RHIDOOR builds fire rated roller shutter doors in a few materials: steel, inorganic fabric, vertical steel, and side-coiling steel. Most buyers don’t know much about how these differ, so let’s walk through the fire rated roller shutter materials before you spec one.
Where fire rated roller shutters are used
These shutters work in both industrial and civilian buildings. Think malls, hotels, warehouses, exhibition halls, archives, theaters, stations, ports, underground works, and any public space that needs a movable fire barrier. They block fire spread and cut the damage a fire causes — which is why they’ve become standard equipment in modern buildings.
What fire rated roller shutters are made of
The vertical steel fire rated roller shutter is built to national and industry standards. Steel makes up the curtain, the rails, the bottom bar, the lintel, and the housing, with a fire roller and control box. Together they meet fire-resistance and heat limits.
Applications
Use these shutters for fire separation in industrial and civilian buildings.
Features
The vertical steel shutter runs three ways: electric, manual, and auto-close. The control box carries smoke and heat sensors, works on its own, and also links to the fire control system. It handles opening, closing, and the two-stage descent on its own. During a fire it slides down and closes, isolating the fire zone.
Specs at a glance
- Opening and closing speed: 2–9 m/min
- Power: 3-phase, 380V, 50Hz
Main functions:
- Button control for up and down, with auto-stop at the upper and lower limits.
- On a smoke signal, the door drops to the midpoint and holds, then closes after a 60-second delay. Or the smoke signal drops it to the midpoint as a smoke curtain, and a heat signal drops it the rest of the way.
- Network link to the fire control room for remote control, with door position reported back.
- A thermal release device closes the door automatically during a fire, even if the power is out.
- Pulling the manual quick-release drops the steel shutter.
- Fire ratings: 1.5h, 2.0h, 3.0h, and 4.0h.

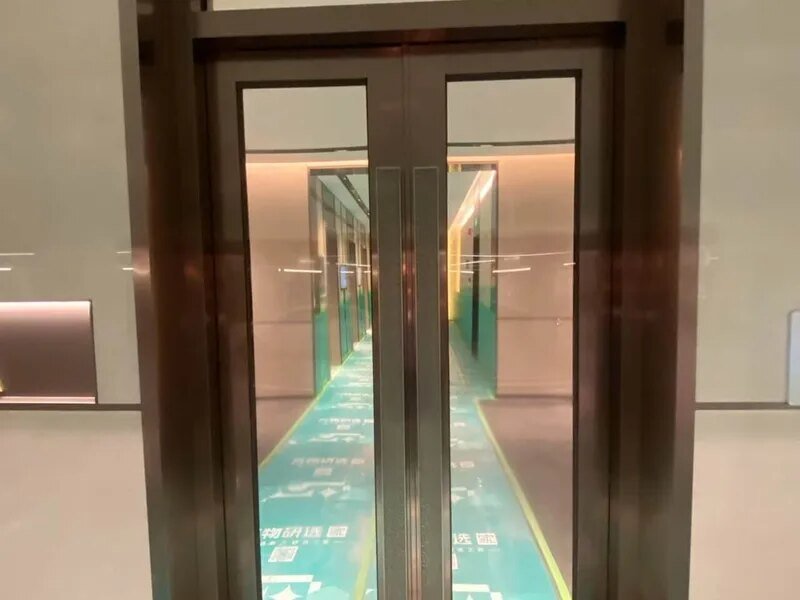

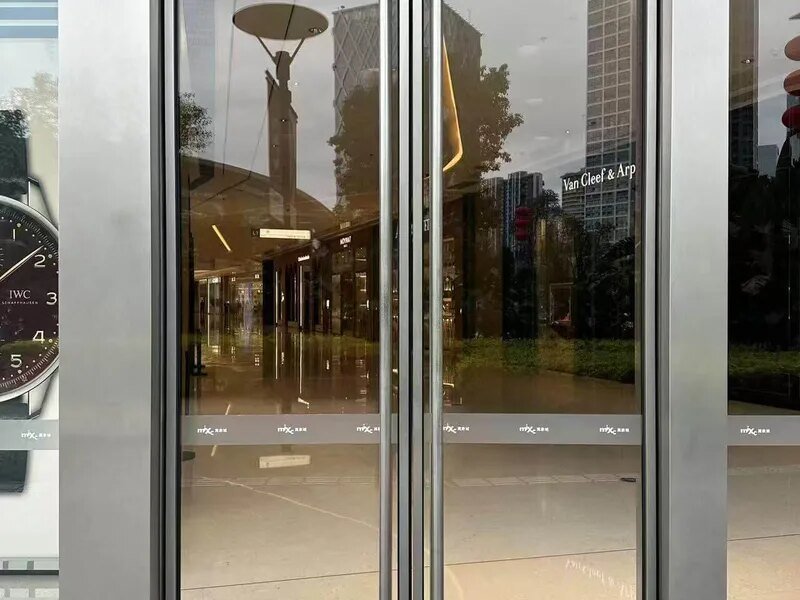

Product cards
Want the proof behind the build? Read what material knowledge to know before buying a fire rated shutter, then see the fire rated roller shutter we manufacture for compliant openings.
Related Articles
- Quality Requirements for Steel Fire Rated Shutter Curtain Plates and Lintels
- Material Knowledge and Function to Know Before Buying a Fire Rated Roller Shutter
- Fire Rated Roller Shutter Door: Size, Material, and Installation Steps
- What Is a Fire Rated Roller Shutter?
Specifying your fire rated roller shutter
Tell us the opening, the building type, and the fire-rating you need. We build to your size with a 15-day lead time, MOQ from 1 pc, and on-site guidance — not just a product.
- Phone: +86 18938501256
- WhatsApp: wa.me/8618938501256
- Email: ruihua@rhidoor.com
Related Articles
- complete fire-rated roller shutter guide
- material knowledge for fire-rated roller shutters
- steel fire-rated shutter curtain and lintel quality
- types of fire-rated roller shutters
- electric roller shutter material comparison
Fire rated roller shutter doors go into public spaces that carry fire-safety requirements: large supermarkets, shopping malls, material markets, exhibition halls, factories, warehouses, and underground parking garages. When a fire alarm sounds, the shutter drops on its own under the building’s fire control system, following a preset program. That slows the spread of flames to other areas and buys time for firefighting. These doors are built to a higher standard — the whole system has to survive around 1,100°C for a set period. How long the door holds its rating is the spec that matters most.
Fire Rated Roller Shutter Applications
Where you put the door shapes the spec you need. A supermarket loading bay takes a different curtain than an underground garage stairwell. In each case the shutter works the same way: the alarm triggers it, the fire control system runs the descent program, and the opening is sealed long enough for people to evacuate and for crews to respond. Match the curtain material and speed to the space, and the door does its job without fuss.
Main Parameters
Door surface: the housing is cold-rolled steel plate, 2.0–2.5 mm thick.
Curtain materials:
- High-density industrial base fabric, made in France, 0.8–2.0 mm thick. Tensile strength (warp/weft): 5700 / 5100 N per 5 cm. Tear strength (warp/weft): 900 / 80 N. Operating temperature −30°C to +70°C. Flame classification NF-P92-503 M2 (France) or DIN 4102 B1 (Germany).
- Transparent PVC sheet, 1.5–2.0 mm thick.
- Control system: PLC and frequency converter.
- Manual and automatic controls: push button, pull cord, remote, magnetic loop, radar, and photo-eye interlock, so the door opens and closes the way your site needs.
Types of Fire Rated Roller Shutters
You will see a few types of fire rated roller shutters built around the curtain. The fabric curtain suits spaces that need insulation and a low reverse-side temperature. The transparent PVC curtain keeps visibility at a service opening. Steel and inorganic composite curtains trade transparency for raw durability. Pick the curtain first, then the control and speed — that order keeps the spec honest.
RHIDOOR builds each type to your opening and fire-compartment layout. Tell us the space and we will match the curtain and the descent program to it.
Explore the Range
Related Articles
- What Is a Fire Rated Roller Shutter?
- Fire Rated Roller Shutter Quality and Where to Install
- How Many Types of Fire Rated Roller Shutters Are There, and Which Is Most Common?
- New Technical Specification Requirements for Fire Rated Roller Shutters (Compiled with Care)
Talk to Our Engineers
Specifying a fire rated roller shutter for your site? RHIDOOR builds to order at MOQ 1 pc with a 15-day lead time, and our engineers provide on-site guidance so installation goes in right the first time. Reach us at +86 18938501256, WhatsApp wa.me/8618938501256, or email ruihua@rhidoor.com.
Related Articles
- complete fire-rated roller shutter guide
- fire-rated roller shutter parameter classification
- fire-rated roller shutter technical specifications
- what is a fire-rated roller shutter
Our premium double-track, double-curtain inorganic fire rated roller shutter is light and insulates well. The reverse-side temperature stays low, and its fire resistance is complete. That makes it a good fit for very large spans and unusual fire-compartment shapes, and it puts less load on the building structure.
Fire Rated Rolling Shutter Door Specifications
- Average temperature rise on the unexposed side: ≤ 79.6°C. Single-point rise: ≤ 113.3°C.
- Fire resistance rating: 4.0 hours or more.
- Opening and closing speed: 2–9 m/min.
- Smoke leakage: no more than 0.2 m³/(m²·min).
Fire Rated Roller Shutter Parameters
- Fire performance: holds back fire for 3.0 hours (180 min). Radiation heat on the unexposed side: 0.61 W/cm².
- Wind-pressure resistance: at 784.5 Pa, mid-curtain deflection is 45 mm.
- Motor power: 0.25–1.5 kW.
- Main power: AC380V 50Hz. Control power: DC12–24V.
- Average opening/closing speed: 2–9 m/min. Gravity descent speed: 4–9 m/min.
Control Method
The electric control system takes on/off signals from smoke and heat detectors to close the door, or it links to the fire control center. In normal use you can run the door by hand. In a fire it drops to the midpoint on its own, then continues to the bottom after a delay. During a fire you can press any key to send the door back up. The reverse height and the midpoint dwell time are both adjustable. On request we add an obstacle-stop safety sensor and a low-temperature (70°C) thermal-fuse device.
Fire Rated Roller Shutter Classifications
- Steel fire rated roller shutter: curtain, rails, bottom bar, lintel, and housing are steel, with a roller motor and control box, meeting fire-integrity requirements.
- Inorganic composite fire rated roller shutter: curtain of inorganic fiber, with steel clamps, rails, bottom bar, lintel, and housing, plus roller motor and control box, meeting fire-integrity requirements.
- Premium fire rated roller shutter: curtain of steel or inorganic fiber, with steel rails, bottom bar, clamps, lintel, and housing, plus roller motor and control box, meeting fire-integrity, insulation, and smoke-control requirements.
